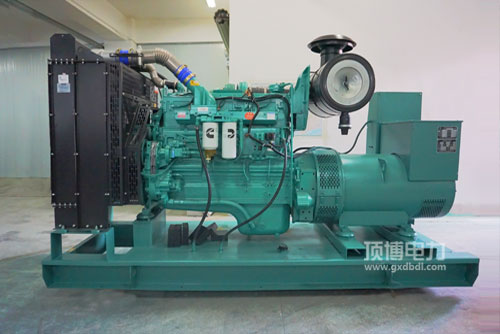

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机燃料经济增长性好: 先进的的燃料掌握设备，独特的STC、ESTC 划分掌握设备，独特设置的柱塞顶部引燃室，油田发射燃料，宽裕做雾化，引燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用启主观因素瞬态效能良好: 很好的的启主观因素纵向装修设计，协调康明斯独家的EFC体系，控制定位精度大，加载时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用汽车发主观因素升公率高: 整体化设计方案密集.样貌装置合情合理，正常运行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50拥有我国非路段三是关键期及北美地区Tier2. Tier 3排放量法律规定符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可知性好， 起倾向启动及维持新车保养便捷，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率区域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯风能发电用启心理的特质：比热容小， 文件压缩变高， 防雨百叶气进行加热，更能启动服务器，移动式车载一体机电的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起行为规格	所用工作功率(kW)Prime Power	应急工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
